Anti Puncture Helmet Testing Equipment Diameter 96mm Rustproof

Name: Anti Puncture Helmet Testing Equipment Diameter 96mm Rustproof
Brand: lixian
Price: 1 USD

Brand Name : lixian

Model Number : HZ-8101

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7 days

Packaging Details : wood

Standard : GB / T 2812-2006

MODEL : HZ-8101

Weight : 3-3.05kg

drop height : 1000mm

Force sensor : Measuring range 0-20KN

maximum diameter : 28mm

Contact Now

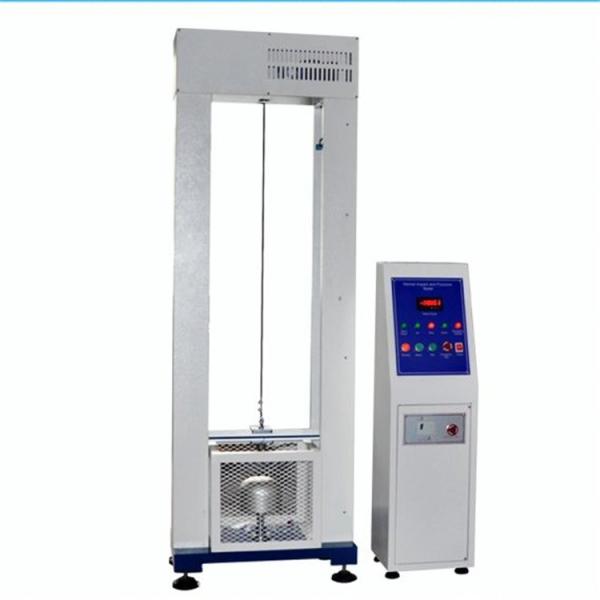

Helmet Testing Equipment GB / T 2812-2006 Helmet Impact and Puncture Test Machine HZ-8101

Helmet Impact and Puncture Test Machine HZ-8101 dedicated to the detection helmet impact absorption properties and puncture resistance.

I. Purpose:
Helmet Impact and Puncture Test Machine HZ-8101 dedicated to the detection helmet impact absorption properties and puncture resistance.

II. Test methods:
Preconditioning: tempering treatment, ultraviolet irradiation pretreatment, water treatment, the above requirements can be pre-integrated with the A705 pretreatment tank.
Helmet shock absorption performance test methods: the height of the drop hammer 1000mm ± 5mm; sequentially by flooding, heat, cold, ultraviolet radiation pretreatment helmets for testing.
Puncture resistance test method: puncture the cone axis so that it passes through the center of the helmet crowns 100mm diameter weakest point within the structure, adjusting cone tip to puncture crowns contact point height 1000mm ± 5mm, turn right after flooding, high temperatures , temperature, ultraviolet irradiation pretreatment helmets tested.

III. Main technical parameters:

Model	HZ-8101
Drop hammer	the impact of the drop hammer
Weight	5-5.01kg
Diameter	96mm
Material	45 # steel
Puncture hammer	Weight: 3-3.05kg
Cone angle	60 °
Cone tip diameter	1mm
hardness	HRC45
length	40mm
maximum diameter	28mm

IV. Features:
(1) Drop hammer and hammer to replace simple operation.
(2) With automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.
(3) 3 electric hoist with optical positioning device, automatic positioning, accurate and reliable.
(4) 4 wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.
(5) LED digital display, auto-save maximum force.

V. Standard:
GB / T 2812-2006 "helmet test methods" within the shock absorbing properties and puncture resistance test standards.
GB / T 2811-2007 "helmet"
